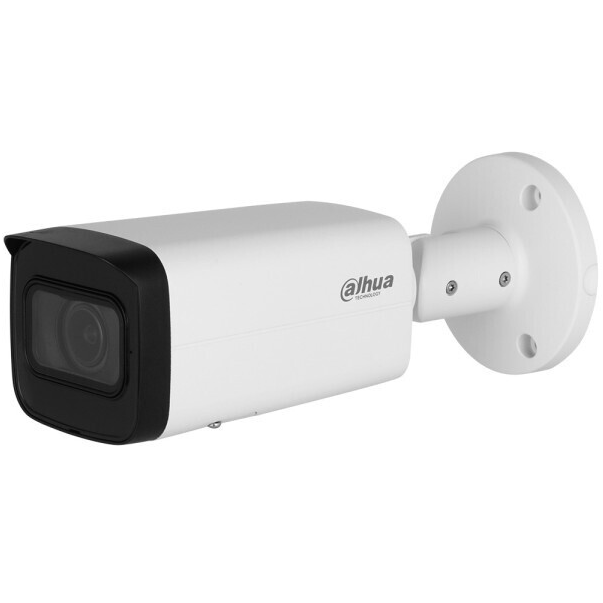

Dahua bullet IP 5MP 2,7-13,5mm, POE, SMD PLUS
DH-IPC-HFW2541TP-ZS-27135 Caméra bullet IP/POE 5 Mégapixels jusqu'à 30ips, vision nocturne 60m, objectif varifocal motorisé 2,7-13,5mm, détection intelligente WizSense (franchissement de ligne, intrusion) et intelligence artificielle SMD Plus avec classification humains et véhicules, 12VDC/PoE, IP67, stockage interne MicroSD jusqu'à 256Go (non incluse)
Caméra Dahua IPC-HFW2541TP-ZS
Découvrez la caméra bullet Dahua IPC-HFW2541TP-ZS avec sa résolution 5Mp et ses fonctions avancées de détection intelligente WiZSense et technologie SMD PLUS. Sa fonction SMD PLUS lui confère une qualité de détection intelligente de haut niveau permettant de réduire les fausses alarmes et de classifier les humains et les véhicules. Cette caméra Dahua peut être installée à l'intérieur comme à l'extérieur (IP67) et dispose d'un caisson en métal. IPC-HFW2541TP-ZS Dahua dispose d'un objectif varifocal motorisé 2,7-13,5mm ! Cette caméra Dahua est idéale pour sécuriser un commerce, une villa... Alimentation par 12VDC ou POE, stockage MicroSD jusqu'à 256Go. La caméra Dahua IPC-HFW2541TP-ZS est compatible avec l'ensemble des NVR Dahua mais également avec les NVR compatibles OnVif, elle peut donc compléter une installation de vidéosurveillance IP existante.
Caractéristiques techniques caméra Dahua IPC-HFW2541T1-ZS
Camera
Image Sensor
1/2.7" CMOS
Max. Resolution
2960 (H) × 1668 (V)
ROM
128 MB
RAM
256 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.007 lux@F1.5 (Color, 30 IRE)
0.0007 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
>56 dB
Illumination Distance
60 m (196.85 ft) (IR)
Illuminator On/Off Control
Auto; Manual
Illuminator Number
4 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type
Motorized vari-focal
Lens Mount
φ14
Focal Length
2.7 mm–13.5 mm
Max. Aperture
F1.5
Field of View
H: 113°–31°; V: 58°–18°; D: 138°–36°
Iris Control
Fixed
Close Focus Distance
0.8 m (2.62 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
W
64.0 m
(210.00 ft)
25.6 m
(84.00 ft)
12.8 m
(42.00 ft)
6.4 m
(21.00 ft)
T
210.0 m
(689.00 ft)
84.0 m
(275.60 ft)
42.0 m
(137.80 ft)
21.0 m
(68.90 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Intelligence
IVS (Perimeter Protection)
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec
Smart H.265+; Smart H.264+
Video Frame Rate
Main stream: 2960 × 1668 @(1–20 fps )/2688 × 1520@(1–25/30 fps)
sub stream: 704 × 576 @(1–25 fps)/704 × 480 @(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability
2 streams
Resolution
2960 × 1668 (2960 × 1668); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps
Day/Night
Auto(ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto; Manual
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Smart Illumination
Yes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror
Yes
Privacy Masking
4 areas
Audio
Built-in MIC
Yes
Audio Compression
G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only - ZAS supports); SMD; security exception
Network
Network Port
RJ-45 (10/100 Base-T)
SDK and API
Yes
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host
20 (Total bandwidth: 48 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser
IE; Chrome; Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Client
iOS; Android
Security
�rusted execution; Digest; �ecurity logs; WSSE; �ccount lockout; �yslog; �ideo encryption; 802.1x; IP/MAC filtering; HTTPS; �rusted upgrade; �rusted boot; �eneration and importing of X.509 certification
Certification
Certifications
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input
1 channel (RCA port) (Only - ZAS supports)
Audio Output
1 channel (RCA port) (Only - ZAS supports)
Alarm Input
1 channel in: 5mA 3V–5V DC (Only - ZAS supports)
Alarm Output
1 channel out: 300mA 12V DC (Only - ZAS supports)
Power
Power Supply
12 VDC/PoE (802.3af)
Power Consumption
-ZS:
Basic: 2.4 W (12 VDC); 3.1 W (PoE);
Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 7 W (12 VDC); 8.4 W (PoE)
-ZAS:
Basic: 2.4 W (12 VDC); 3.1 W (PoE);
Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 7.1 W (12 VDC); 8.5 W (PoE)
Environment
Operating Temperature
–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity
≤95%
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
≤95%
Protection
IP67; IK10 (optional)
Structure
Casing Material
Metal
Product Dimensions
238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)
Net Weight
-ZS: 0.74 kg (1.63 lb)
-ZAS: 0.77 kg (1.70 lb)
Gross Weight
-ZS: 0.98 kg (2.16 lb)
-ZAS: 1.01 kg (2.23 lb)
